MPN: GP-UD1300GM PG5 EAN: 4719331553401 Item number VY90B

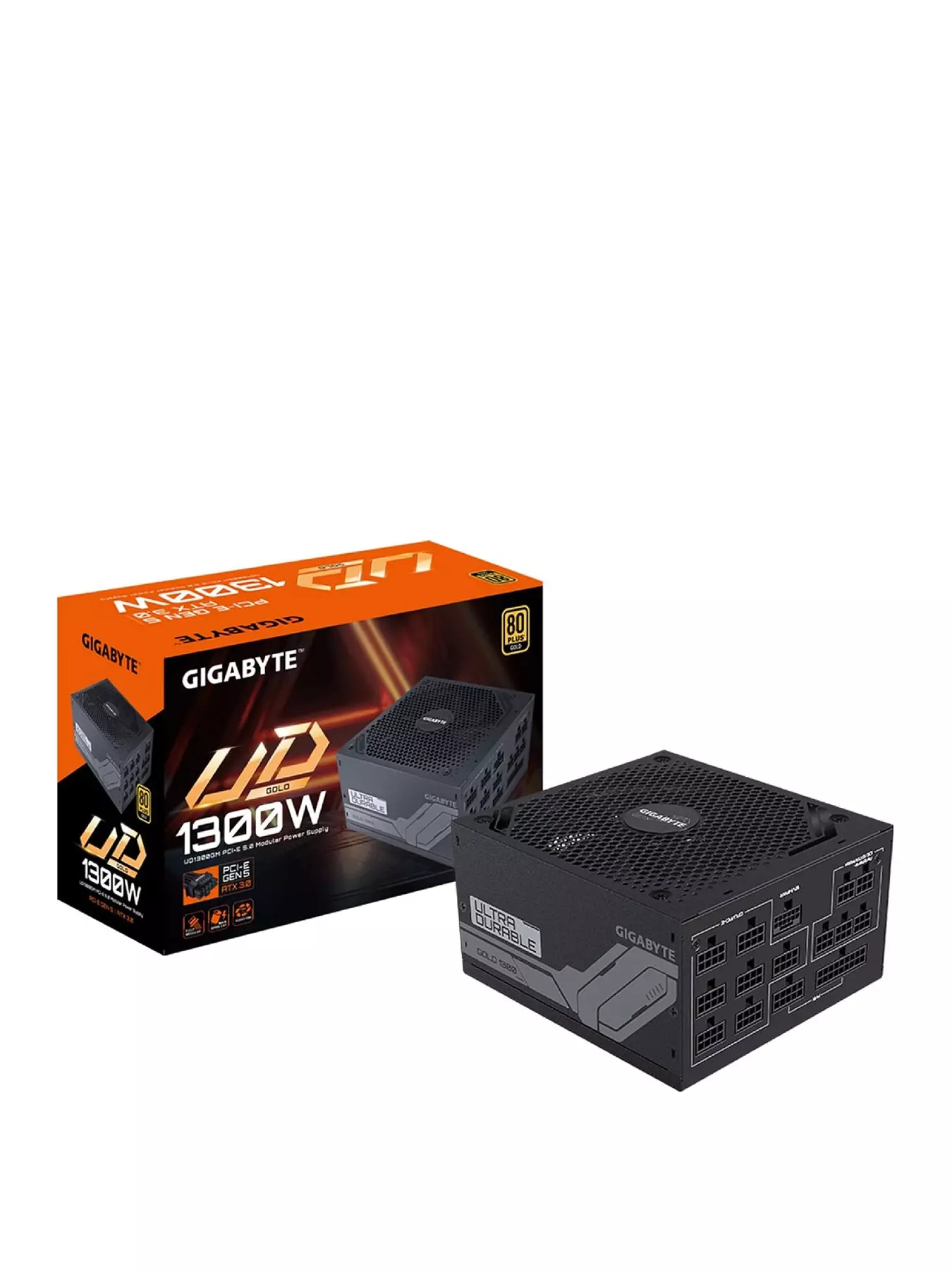

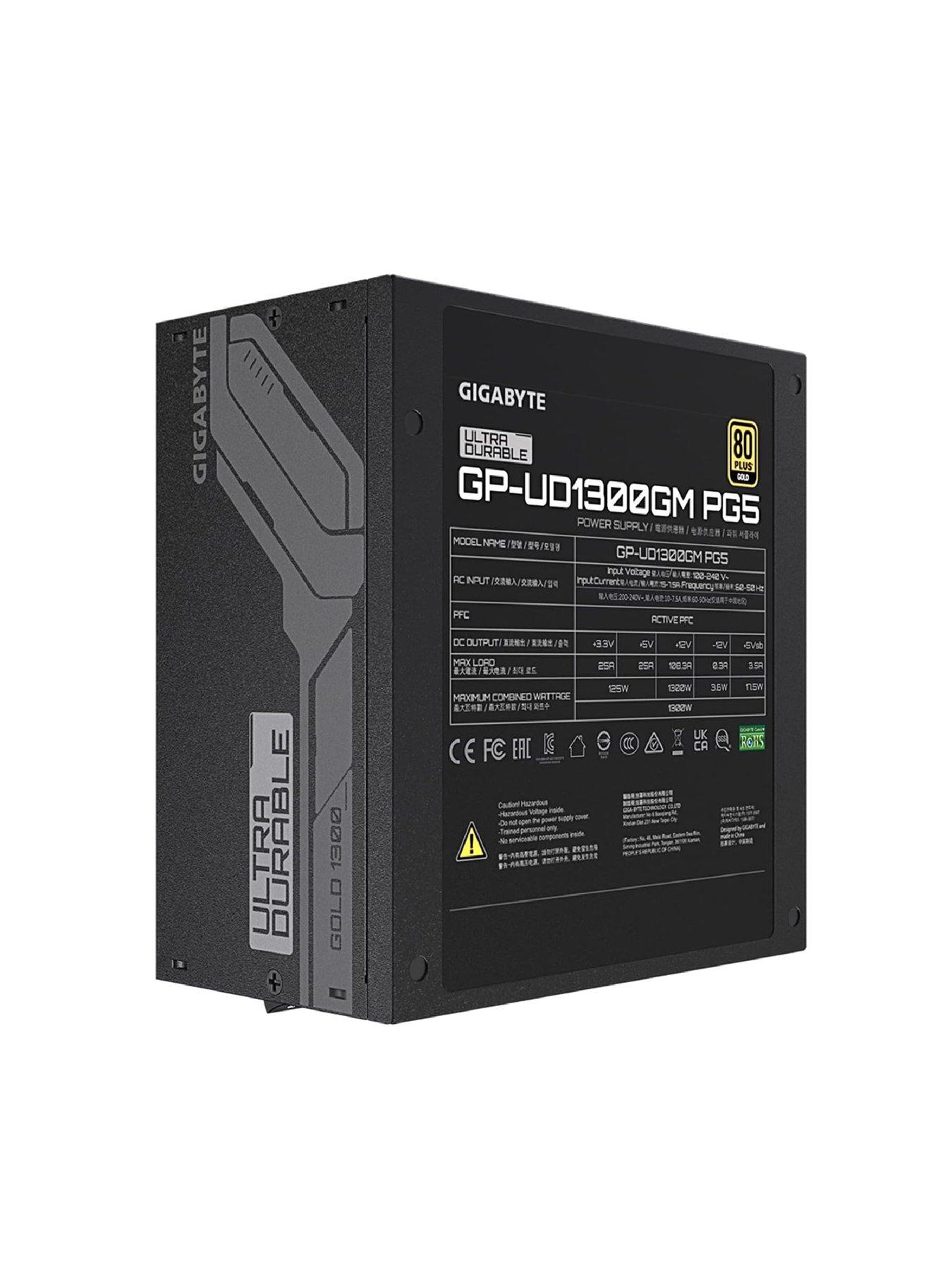

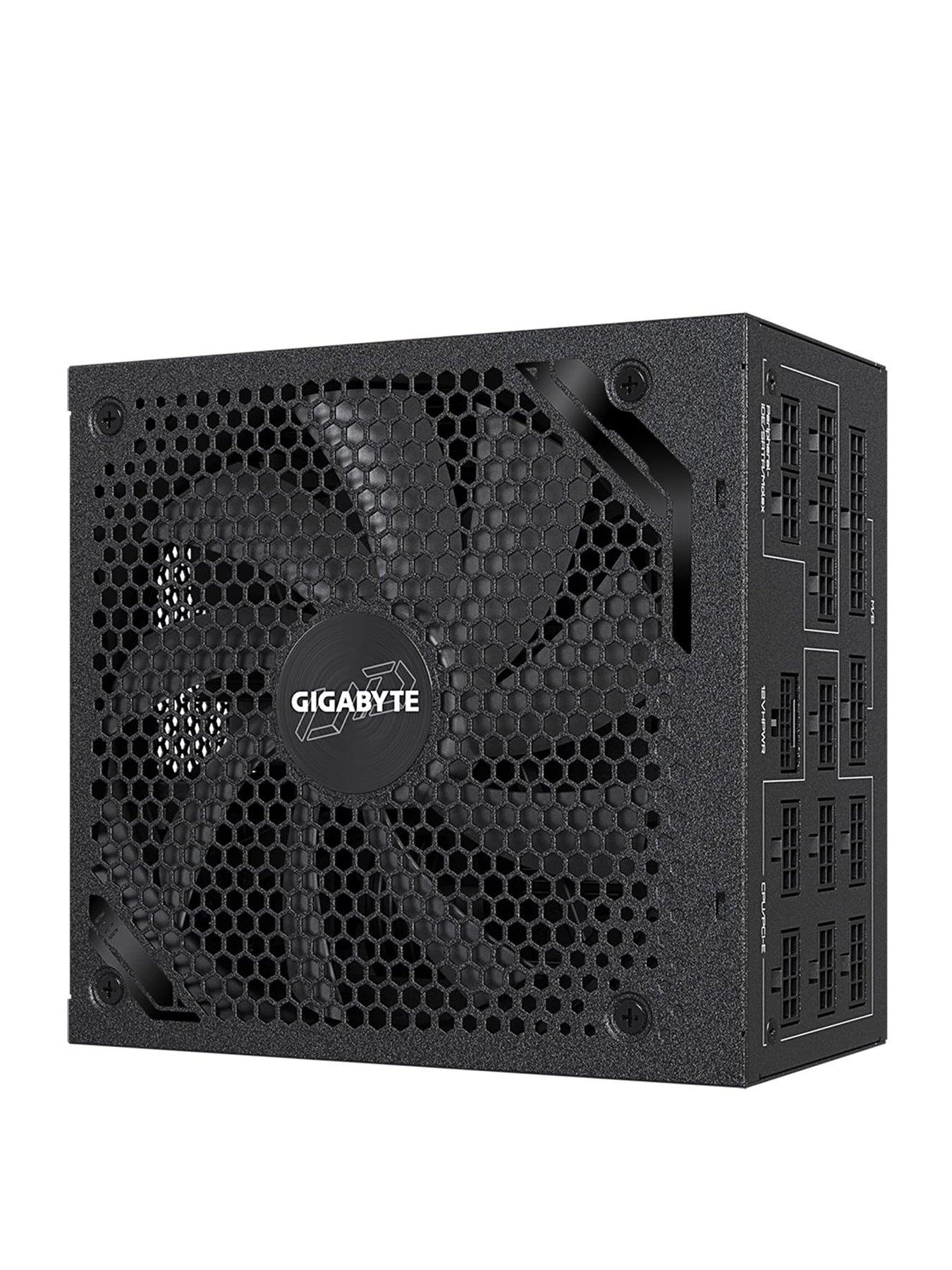

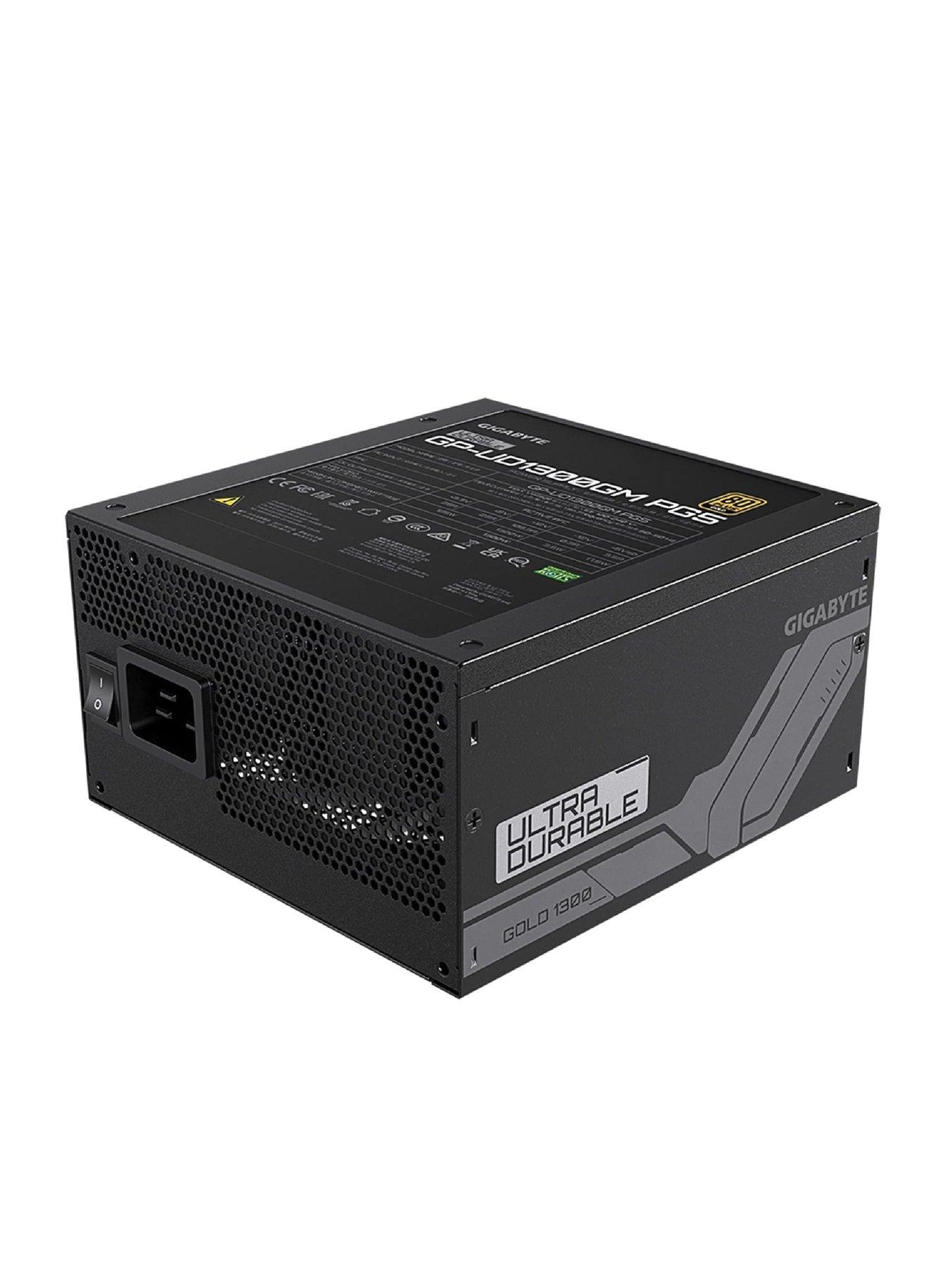

GIGABYTE 1300W GOLD MODULAR UD1300GM PG5GIGABYTE 1300W GOLD MODULAR UD1300GM PG5
|
Product Features
- Support PCIe Gen 5.0 graphics card
The UD1300GM PCIE 5.0 can sustain up to 3x GPU power excursion. It has a 16-pin connector and comes with a high-quality native 16-pin cable that allows you to use the PSU with a PCIe Gen 5.0 graphics card. This cable can support up to 600 watts of power to the graphics card. - Support Intel ATX 3.0 standard
The UD1300GM PG5 can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. - Ultra Durable
Inherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 140 mm smart double ball bearing fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time. - Fully modular design

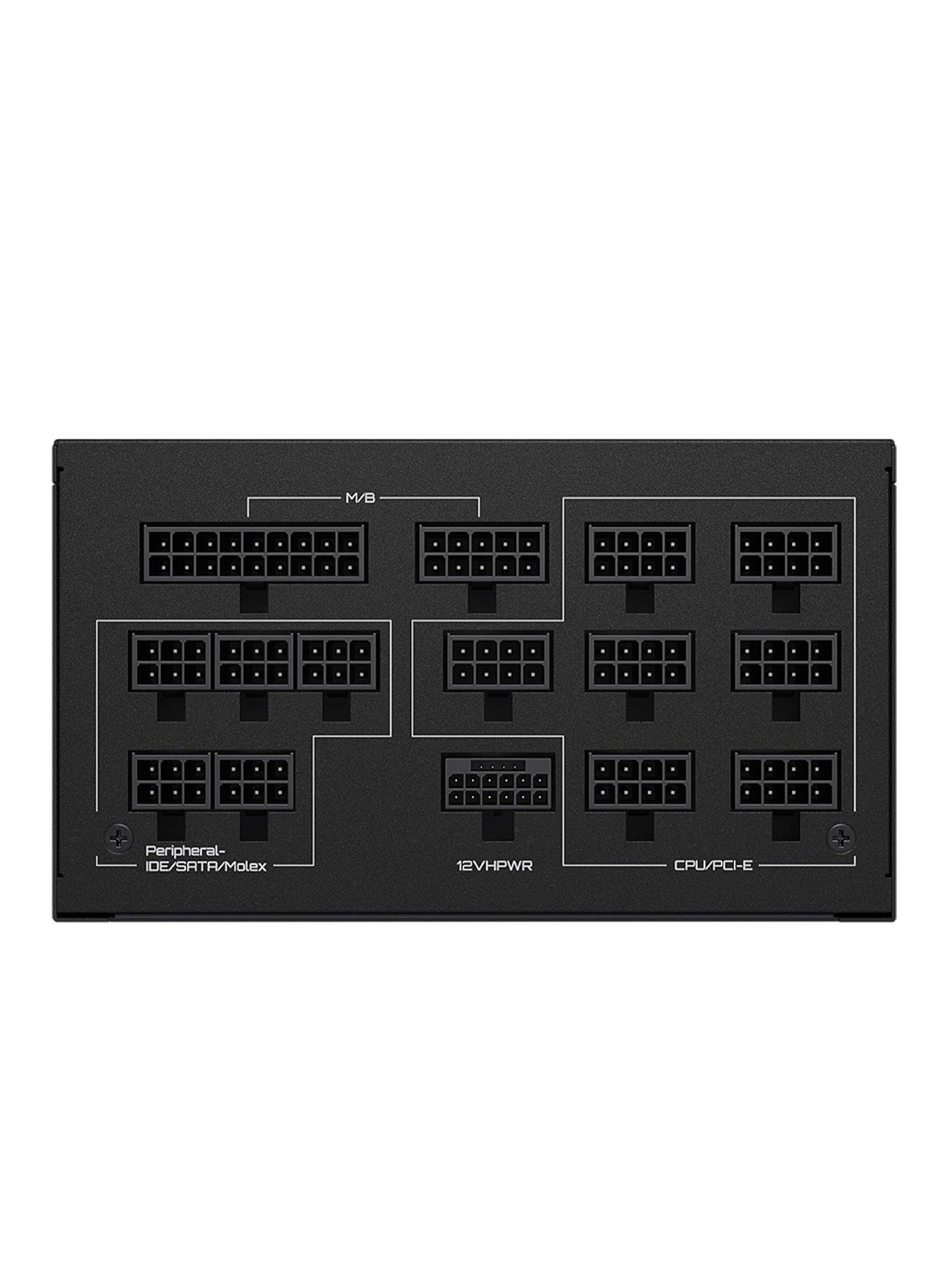

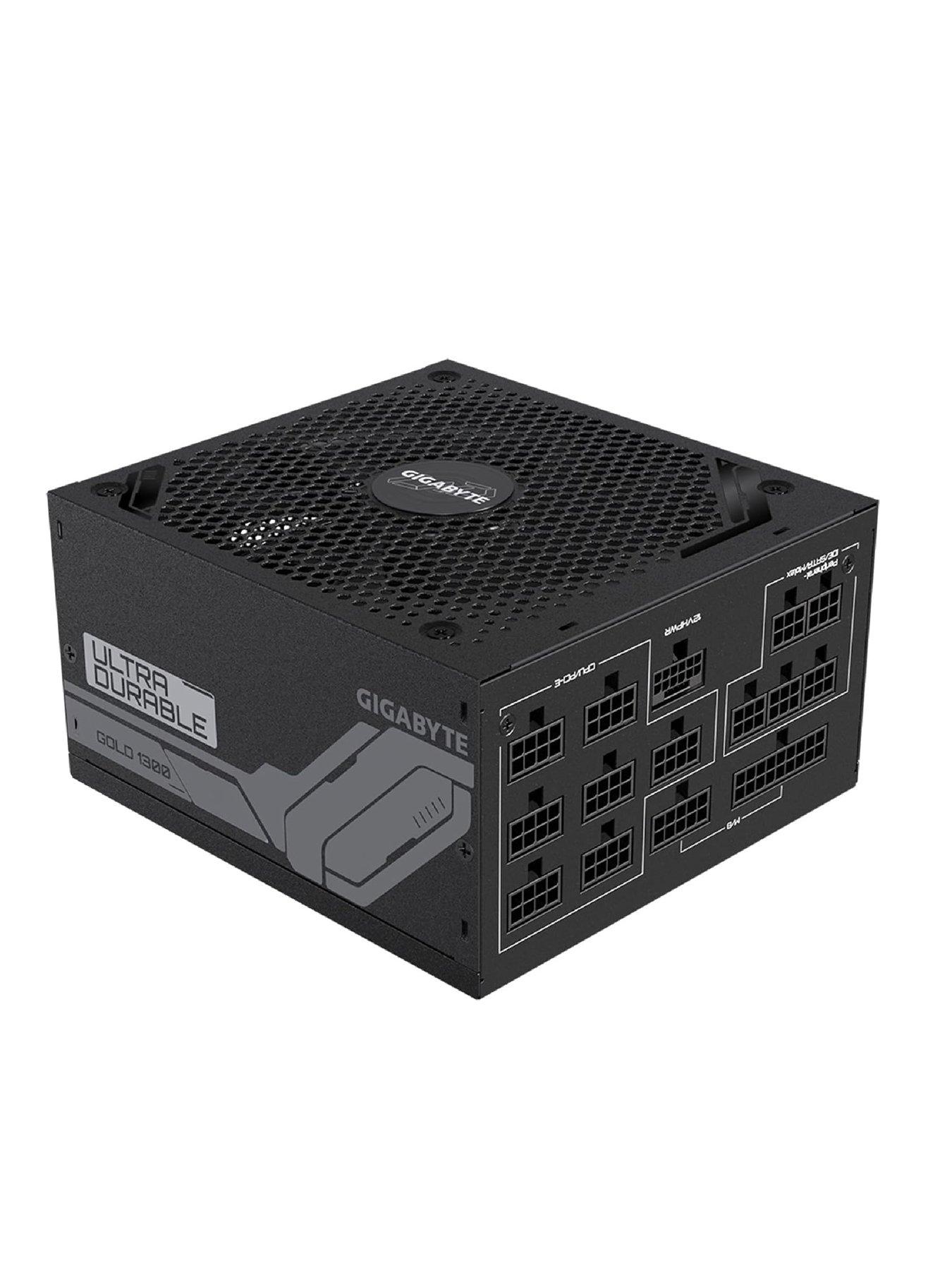

All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance. - 80 Plus Gold certified
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. - Plentiful power supply
The +12VHPWR and the +12 V can provide a total of 1300 W power output. The +12VHPWR can provide up to 600 W for the PCIe Gen 5.0 graphics card. - Compact design
Leveraging the engineers' excellent design capabilities, cooling technology and higher-quality materials, GIGABYTE has reduced the length of the power supply to an amazing 160 mm compared to traditional design. It can be easily installed in any chassis without space constraints.
Technical Specification
| Product Description | Gigabyte UD1300GM PG5 - power supply - 1300 Watt |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| 80 PLUS Certification | 80 PLUS Gold |
| Input Voltage | AC 100-240 V |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 1300 Watt |
| Output Current | +3.3V - 25 A |
| Output connectors | 1 x power 24 pin ATX with detachable 4 pin section |
| Modular Cable Management | Yes |

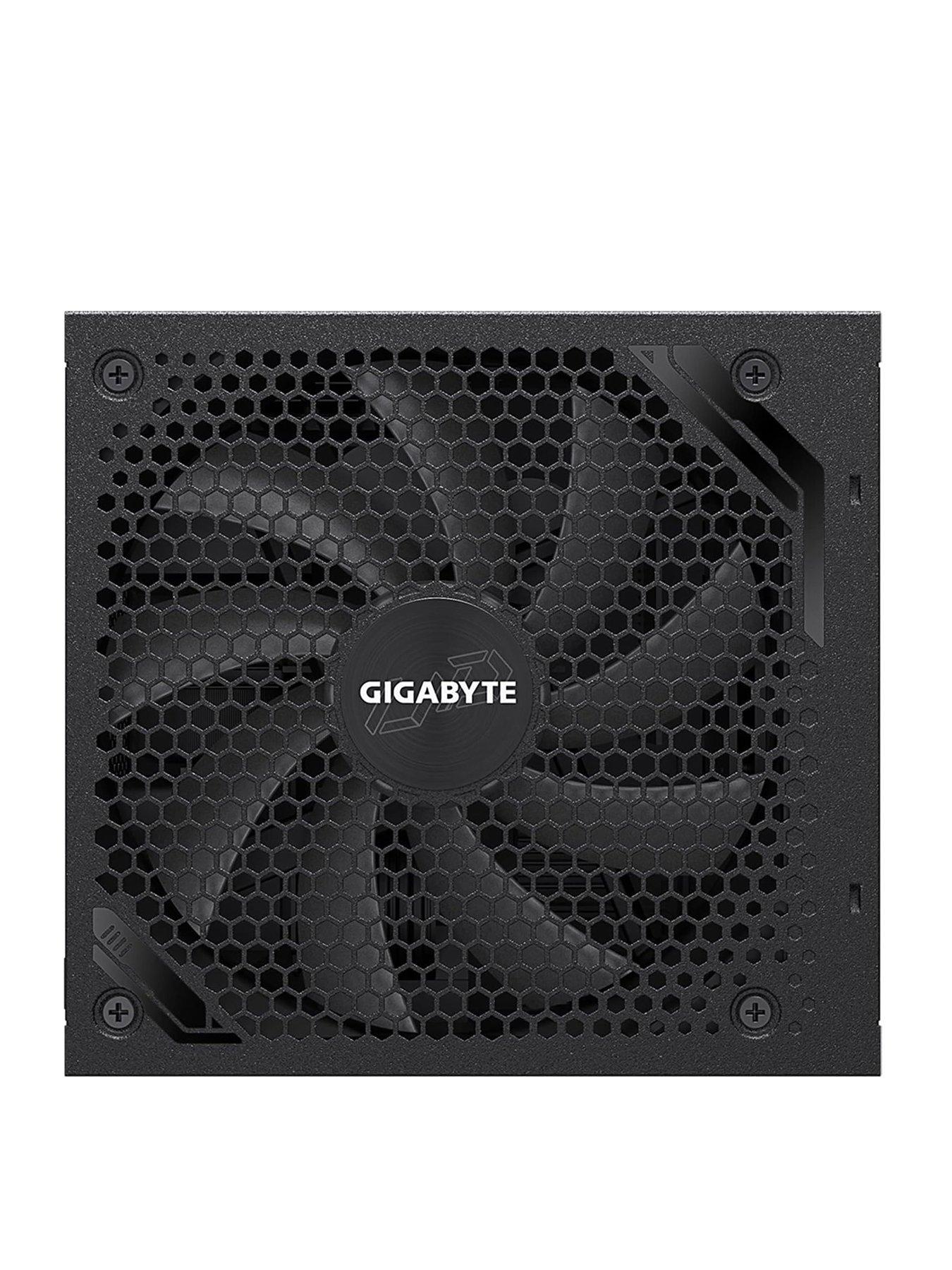

| Cooling System | 140 mm fan |
| Dimensions (WxDxH) | 15 cm x 16 cm x 8.6 cm |
| Manufacturer Warranty | 10 years warranty |
