MPN: MPG B760I EDGE WIFI EAN: 4711377069632 Item number W5PX2

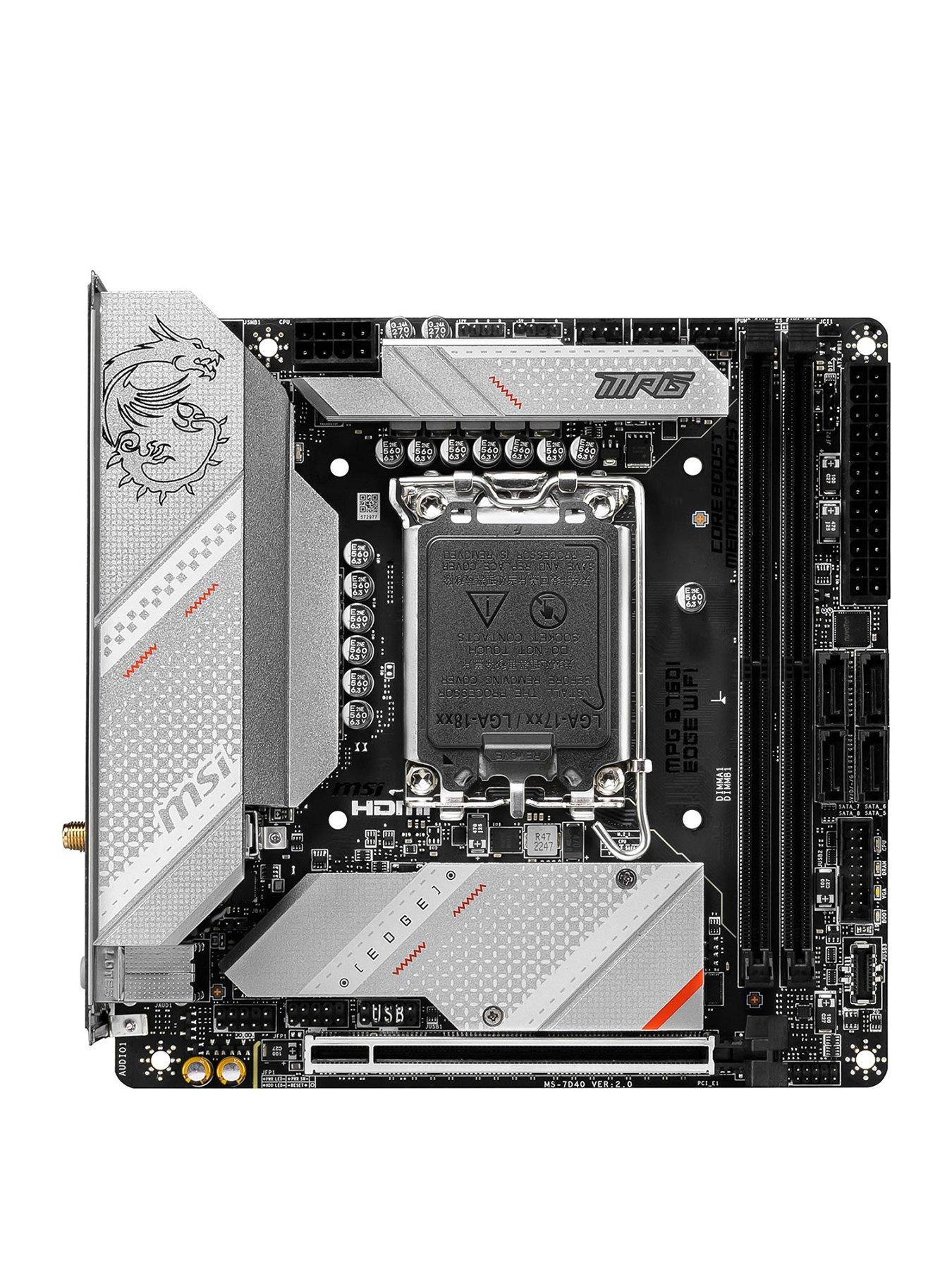

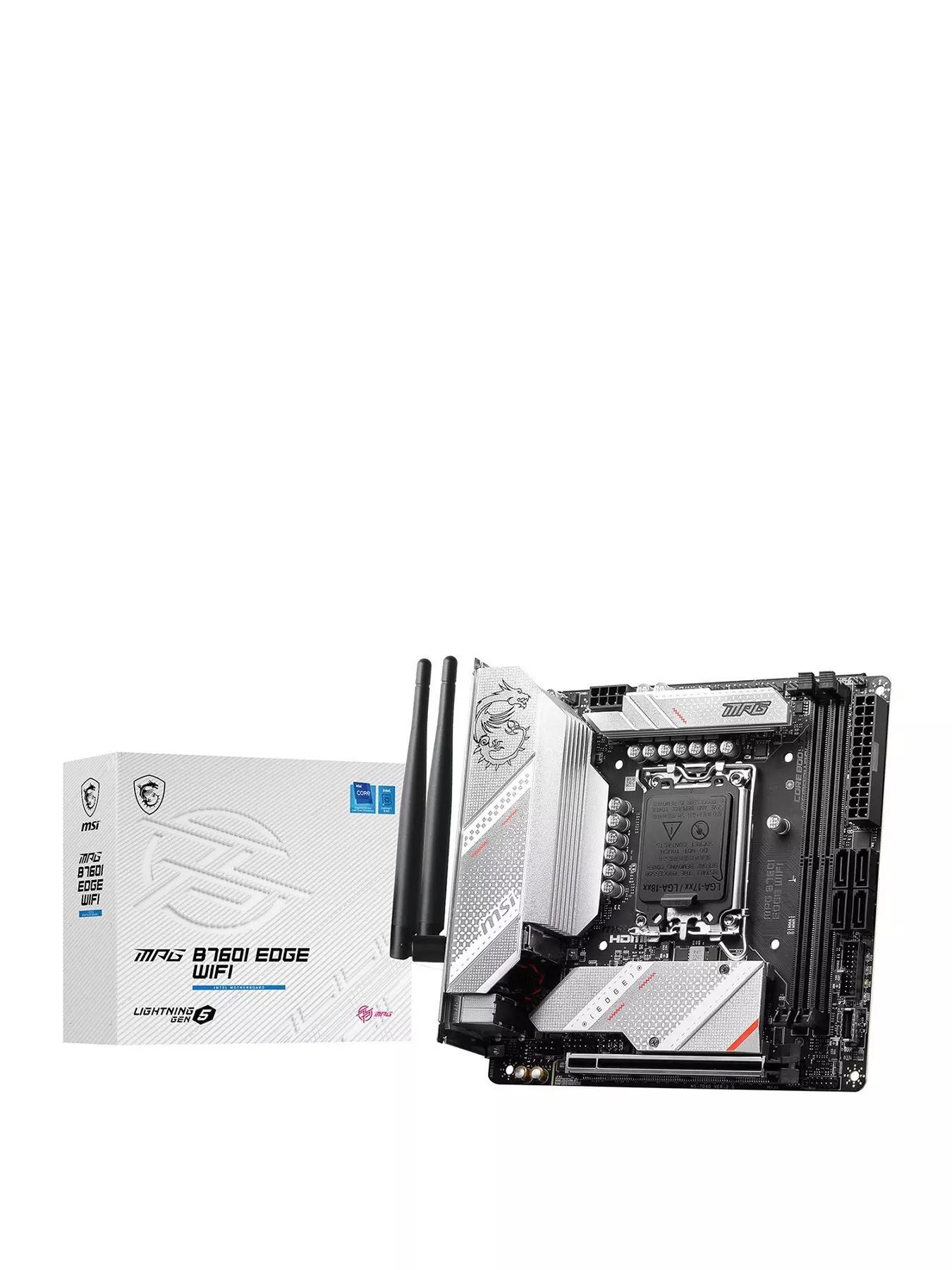

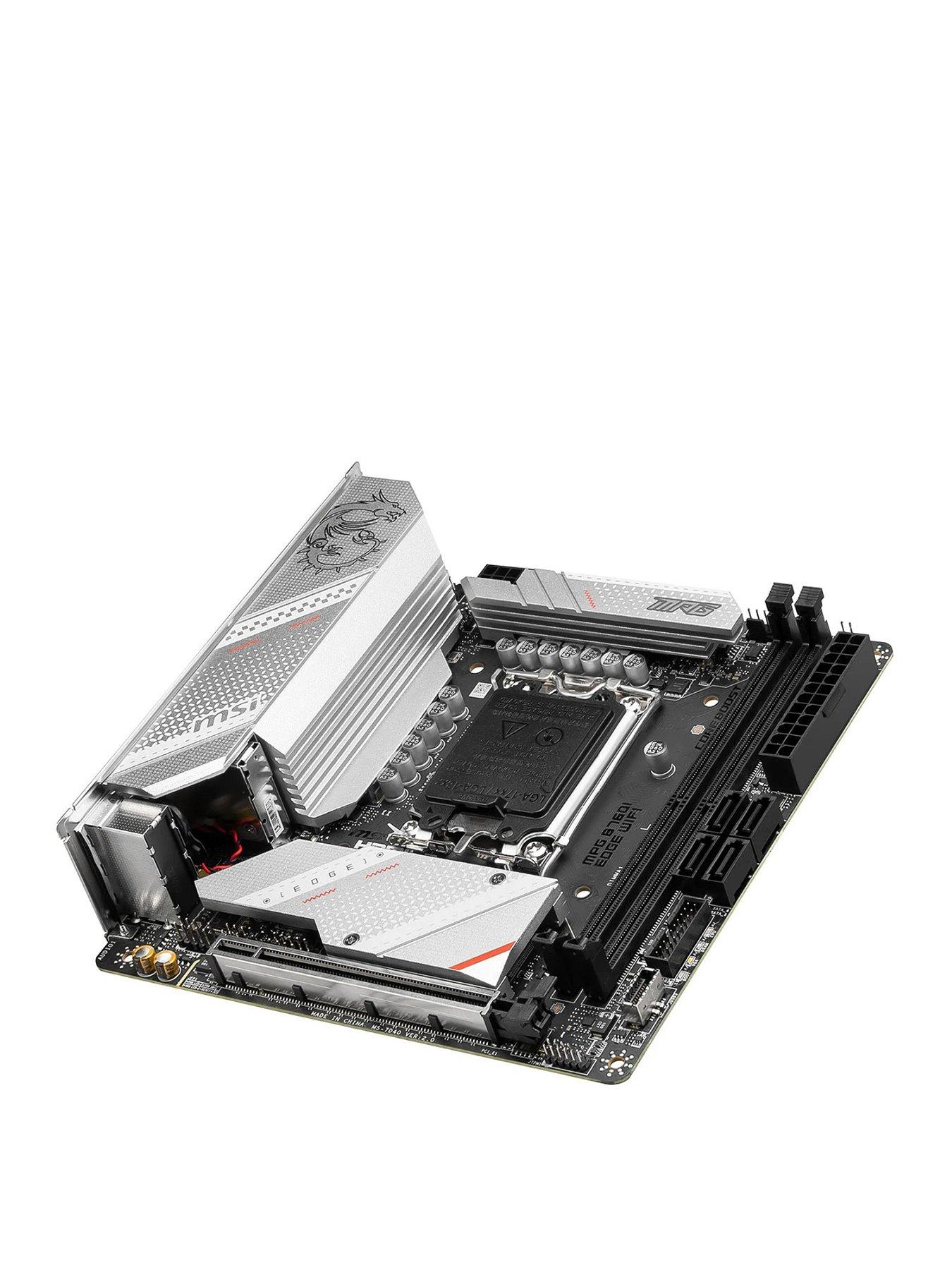

MSI 1700 MPG B760I Edge Wifi Mini-Itx MotherboardThe MPG B760I EDGE WIFI is a gaming-oriented Mini-ITX motherboard based on the latest Intel B760 chipset.
|
Product Features
- Duo M.2 connectors
Onboard Duo M.2 connectors with dual PCIe 4.0 solution, strengthened by M.2 Shield Frozr. - Direct 8+1+1 phases with 90 A SPS
Extreme direct power solution with 8+1+1 phases and 90 A Smart Power Stage unleash the maximum CPU performance. - DDR5 memory
A huge step of DDR performance enhancement with the DDR5 memory and MSI memory boost technology. - Core boost
Premium layout and optimized power design ensure better performance. - Memory boost
Advanced technology to deliver pure data signals for the better performance, stability and compatibility. - Lightning gen 5
The PCIe 5.0 solution with 128 GB/s bandwidth for maximum transfer speed. - Wi-Fi 6E
The higher wireless solution supports 6 GHz spectrum, MU-MIMO and BSS color technology, delivering speeds 2400 Mbps. - 2.5G network solution
Featuring premium 2.5G LAN to deliver better network experience. - Audio boost
Reward your ears with studio grade sound quality for the more immersive audio experience.
Technical Specification
| Product Description | MSI MPG B760I EDGE WIFI - motherboard - mini ITX - LGA1700 Socket - B760 |
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel B760 / Nuvoton NCT6687D-M |
| Processor Socket | 1 x LGA1700 Socket |
| Compatible Processors | (supports 12th Generation Intel Core / Pentium / Celeron) |
| Max RAM Size | 64 GB |
| RAM Supported | 2 DIMM slots - DDR5, non-ECC, unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |

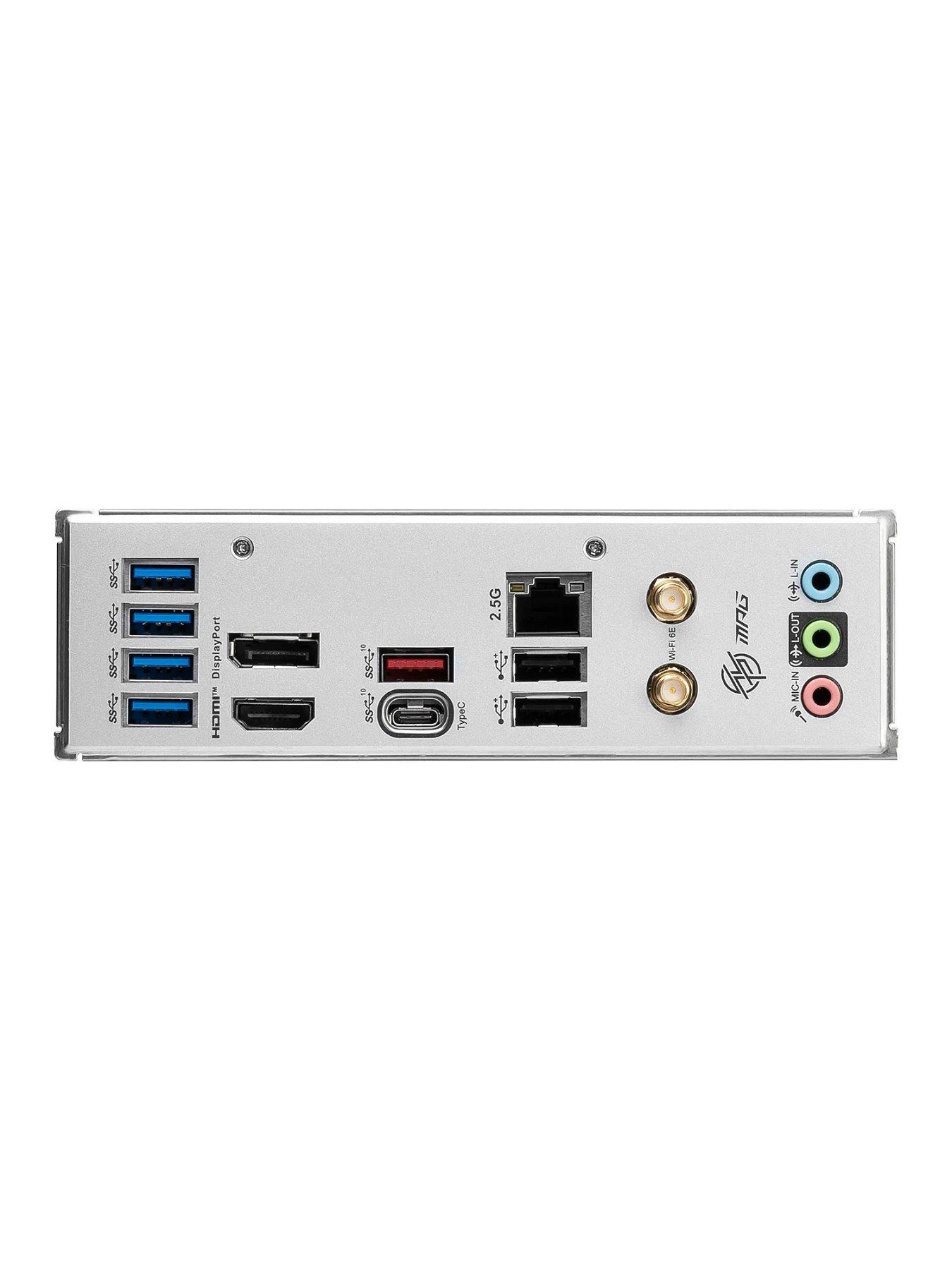

| USB / FireWire Ports | 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) |
| Audio | HD Audio (8-channel) |
| LAN | 2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
