MPN: B550M PRO-VDH WIFI EAN: 4719072733698 Item number W5PX6

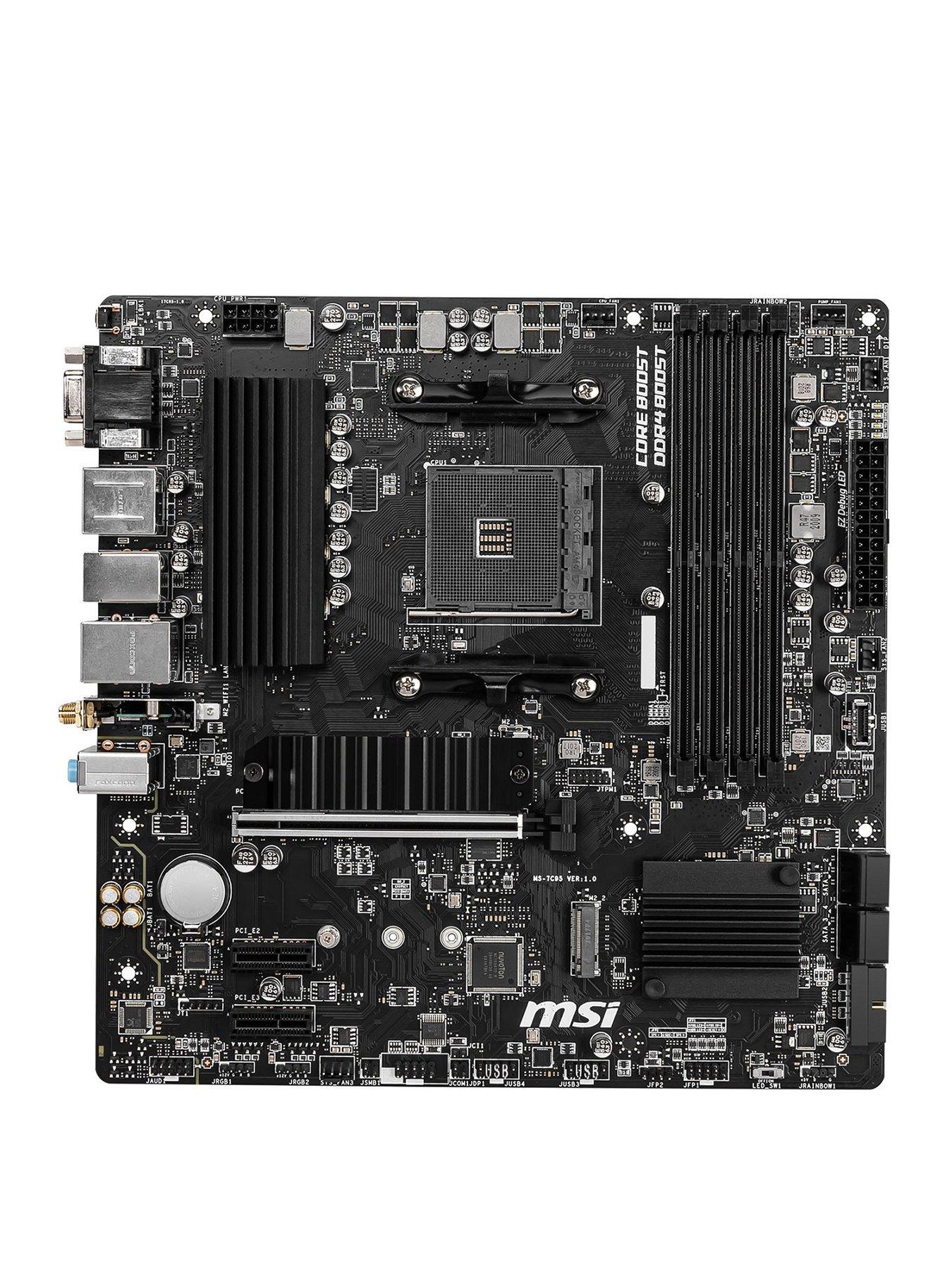

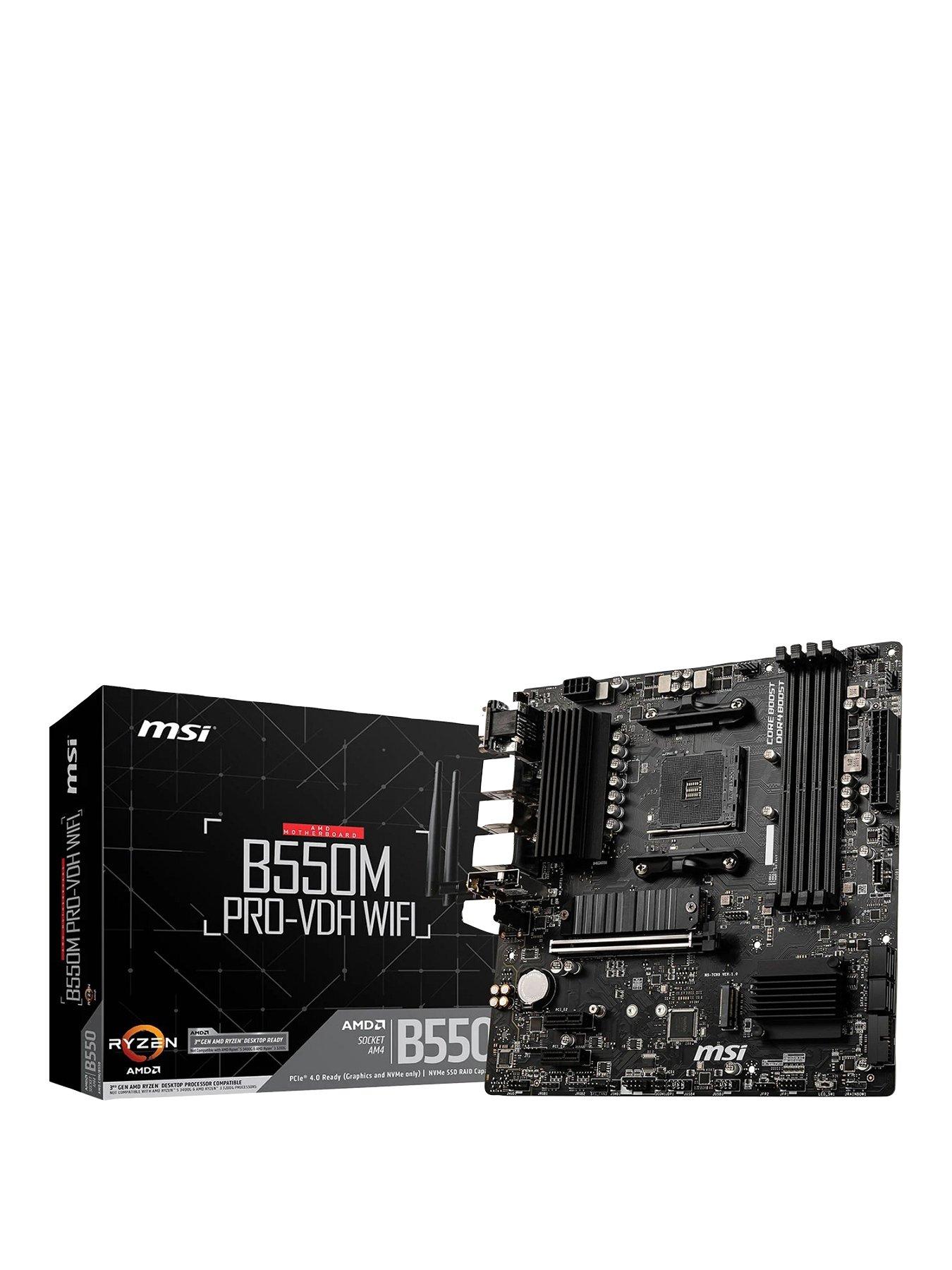

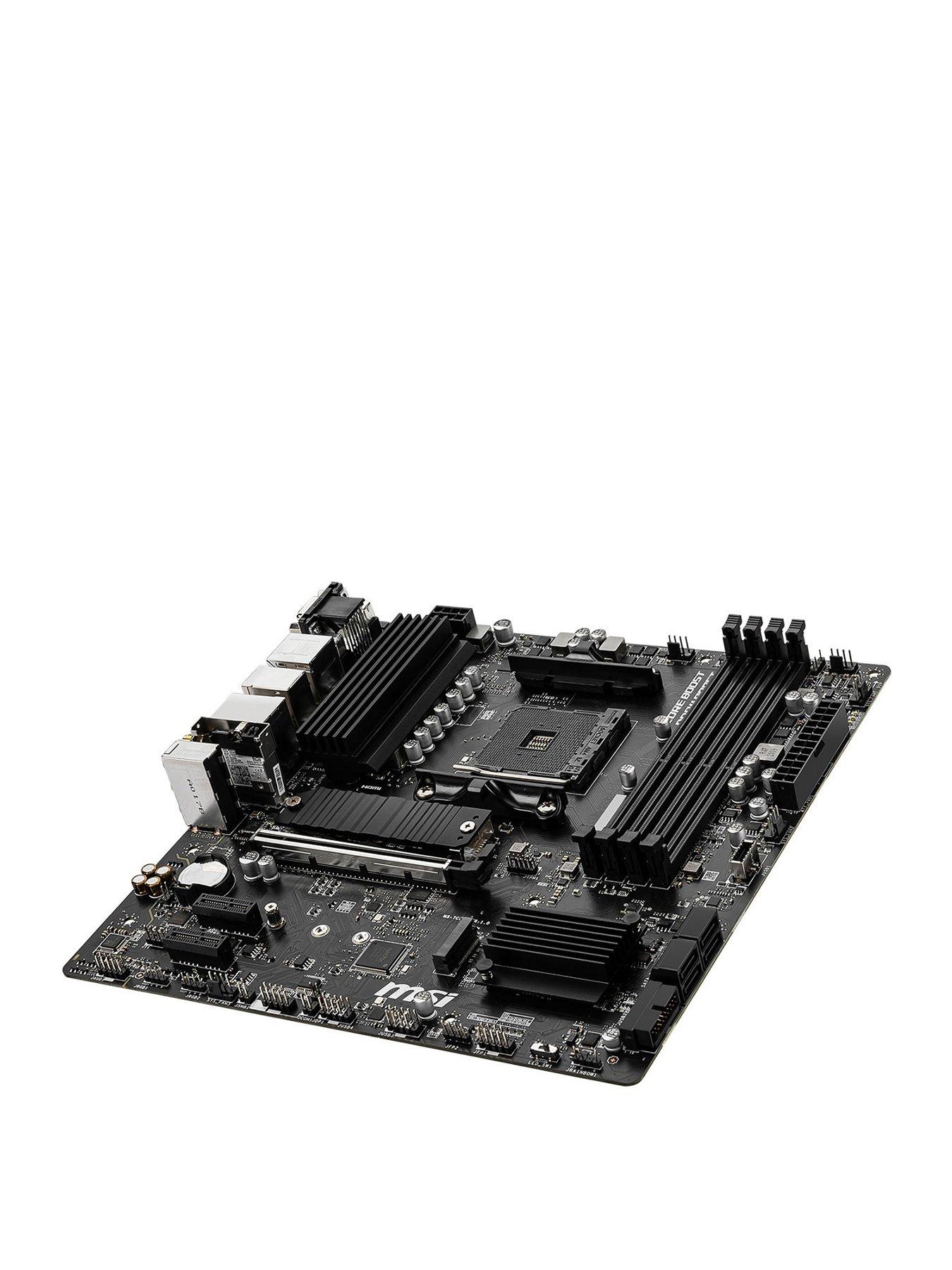

MSI Am4 B550M Pro-Vdh Wifi Micro-Atx MotherboardExperience new generation of the B550M PRO-VDH WIFI motherboard powered by 3rd Gen AMD 3000 series AM4 processors. Outperform your systems capacity with Lightning Gen 4 solution. Exclusive DDR4 Boost and Core Boost, created to keep you one step ahead of the competition. 7W/mK level thermal & choke pad with 2oz thickened copper help your PC remain cool, high performing and reliable.
|
Product Features
- Experience more
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. - Core Boost
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. - PCB with thickened copper
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. - Connectivity
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers' need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
Technical Specification
| Product Description | MSI B550M PRO-VDH WIFI - motherboard - micro ATX - Socket AM4 - AMD B550 |
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B550 |
| Processor Socket | 1 x Socket AM4 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen and New Generation Ryzen with Radeon Graphics) |
| Max RAM Size | 128 GB |
| RAM Supported | 4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered |
| Storage Ports | 4 x SATA-600 (RAID), 2 x M.2 |
| USB / FireWire Ports | 4 x USB 3.2 Gen 1 + 2 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Max Allocated RAM Size | 16 GB |
| Audio | HD Audio (8-channel) |
| LAN | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
